Whitworth Quick Return

Whitworth Quick Return Mechanism

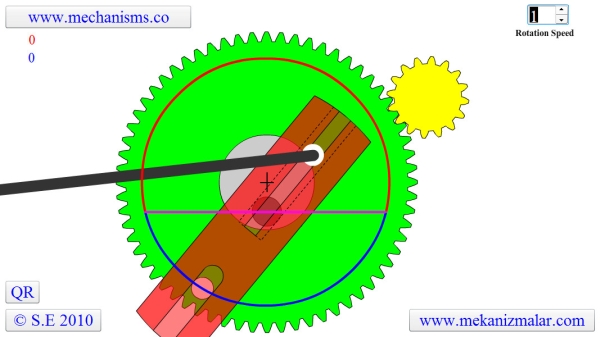

The Whitworth quick return mechanism converts rotary motion into reciprocating motion, but unlike the crank and slider, the forward reciprocating motion is slower rate than the return stroke. This is why it is called quick return mechanism.
