These are the pictures of a class project done by Raoul D. Dib and Charbel S. Saleh at the Lebanese University Faculty of Engineering - Roumieh. They manufactured their mechanism from the animation shown in here I am very happy that my efforts inspires young engineering students, and pleased with their contribution to my web site. You can find the technical drawings of Raoul in here.


I would like to thank Raoul El Dib for providing the pictures of his material feed mechanism. If you are looking to build your own mechanism, I recommend you find the dimensions of your feed mechanism with trial and error. You will learn much more with trial and error than imitating Raoul's dimensions.

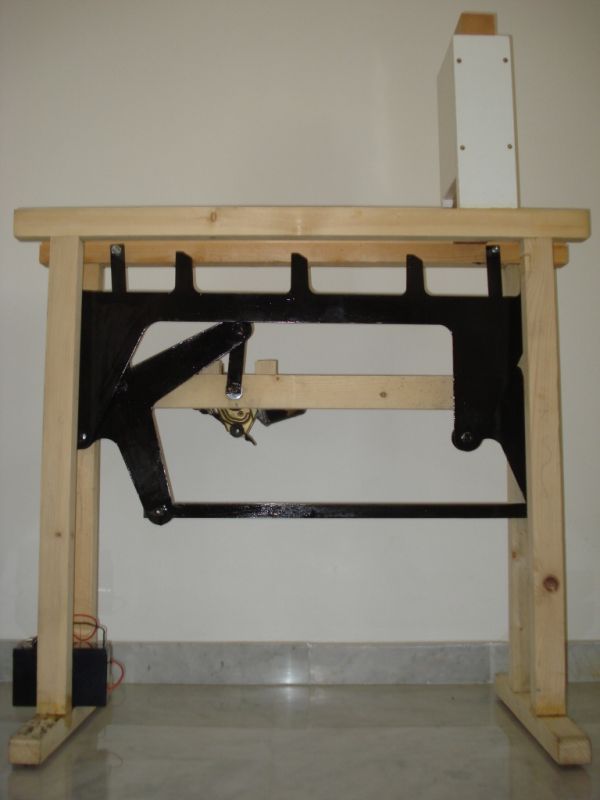

Material Feed Front View

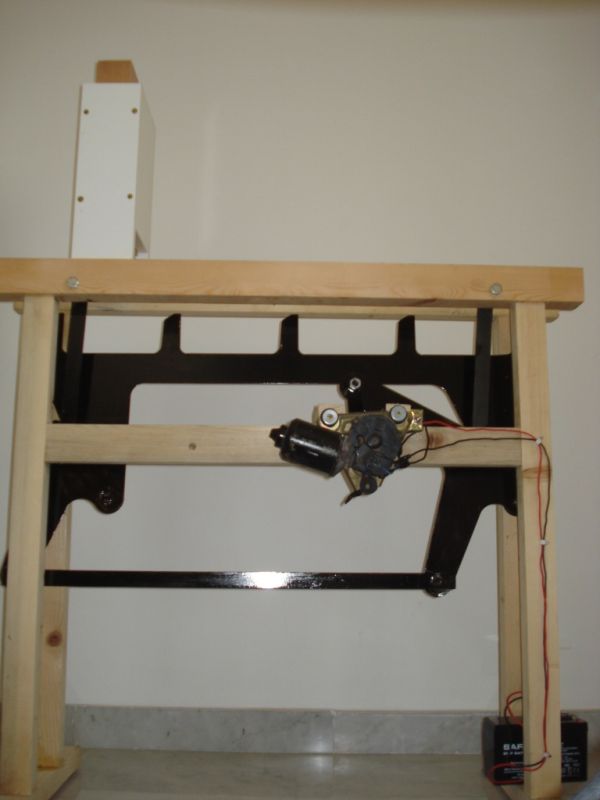

Material Feed Back View

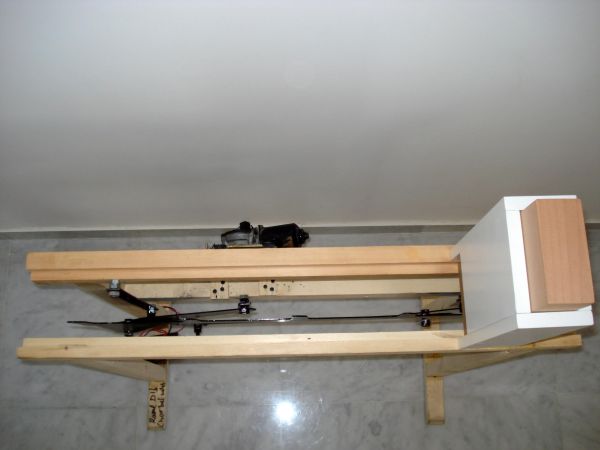

Material Feed Top View

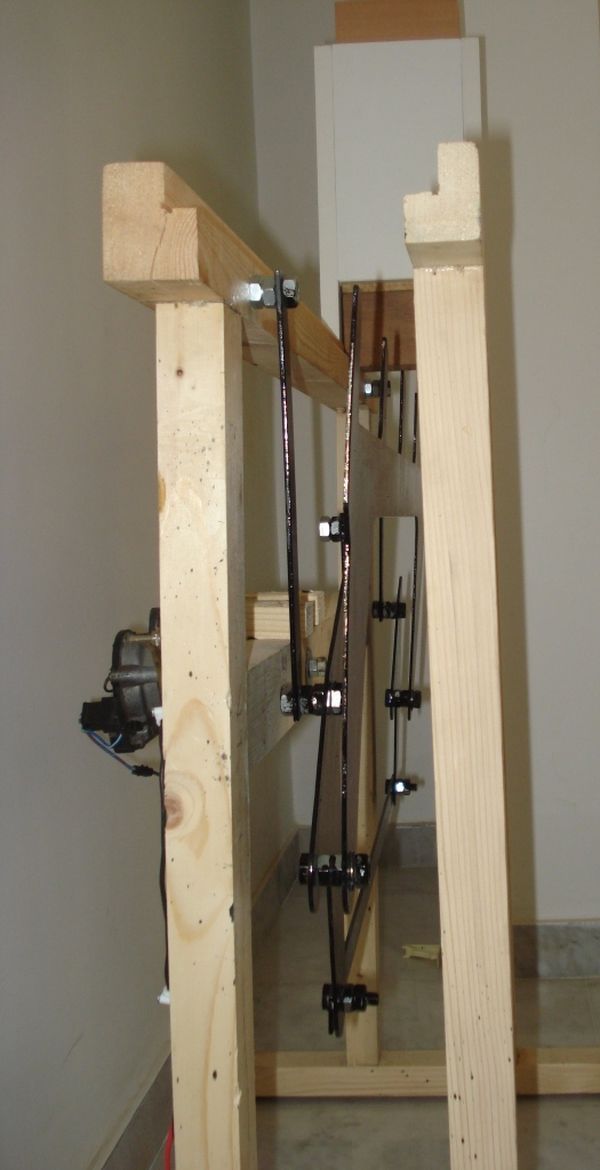

Material Feed Side View

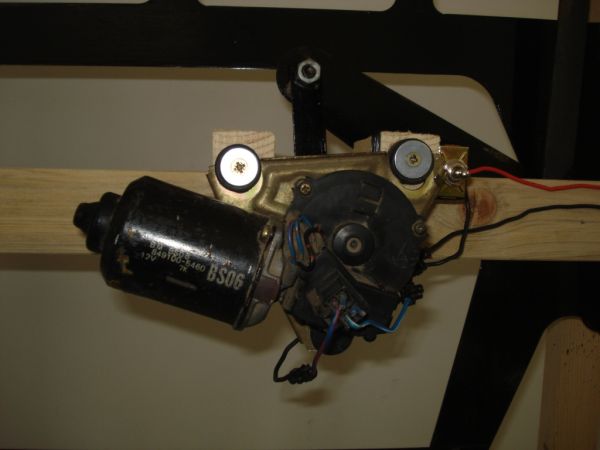

Material Feed Motor View
